Hyundai Elantra: Automatic Transaxle Control System / Input Speed Sensor Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic Diagrams

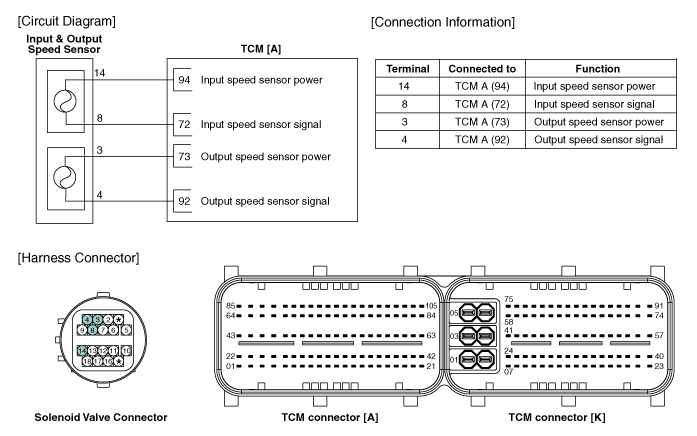

Circuit Diagram

Input Speed Sensor Specifications

Specifications ? Type: Hall effect sensor ? Specifications ItemsSpecificationsOperation condition [°C(°F)](-40 ~ 150) -40 ~ 302Output voltage(V)High1.18 ~ 1.68Low0.59 ~ 0.84 ...

Input Speed Sensor Repair procedures

Inspection 1. Using the GDS, check the input/output speed sensor waveforms. A. Turn OFF the ignition switch. B. Connect the GDS to the Data Link Connector(DLC) on the lower crash pad. C. ...
