Hyundai Elantra: Automatic Transaxle Control System / Line Pressure Control Solenoid Valve Schematic Diagrams

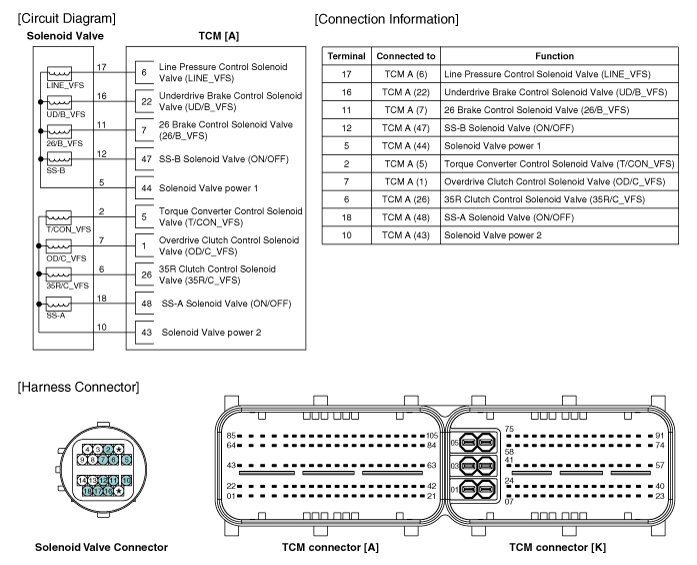

Circuit Diagram

Line Pressure Control Solenoid Valve Components and Components Location
Components Location 1. 26 Brake Control Solenoid Valve (26/B)2. 35R Clutch Control Solenoid Valve (35R/C)3. Underdrive Brake Control Solenoid Valve (UD/B)4. Overdrive Clutch Control Solenoid Valv ...

Line Pressure Control Solenoid Valve Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. M ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Transaxle Control Module (TCM) Repair procedures
Inspection Transaxle Control Module(TCM) Problem Inspection Procedure 1. TEST TCM GROUND CIRCUIT: Measure resistance between TCM and chassis ground using the backside of TCM harness connector as TCM side check point. If the problem is found, repair it. Specification: Below 1? 2. TE ...
