Hyundai Elantra: SRSCM / Occupant Classification System (OCS) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Restraint / SRSCM / Occupant Classification System (OCS) Components and Components Location

Components

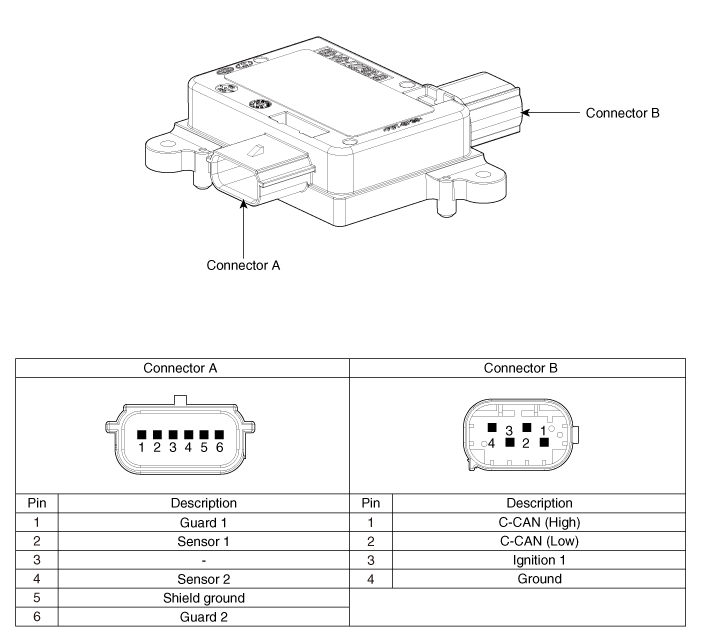

1. Occupant Classification System (OCS) Unit
2. Occupant Classification System (OCS) Sensor

Occupant Classification System (OCS) Unit

Seat Belt Buckle Switch (BS) Repair procedures
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly. (Refer to Body - "Front Seat Assembly") 3. ...

Occupant Classification System (OCS) Description and Operation
Description In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System (OCS). If the seat is occupied, OCS detects passenger presences stat ...
