Hyundai Elantra: Power Door Locks / Power Door Lock Module Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Module Components and Components Location

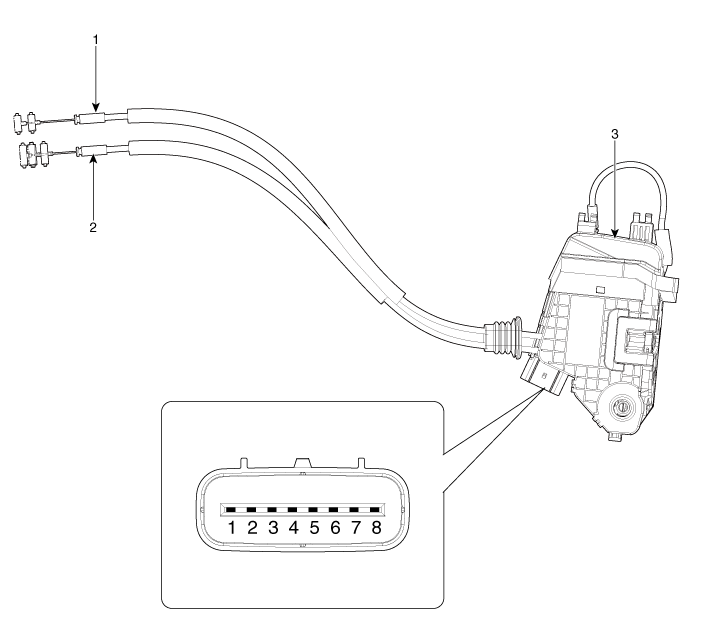

Conponents

1. Door lock/unlock knob cable
2. Door inside handle cable
3. Door Latch

Components and Components Location
Component Location 1. DDM (Driver Door Module)2. ADM (Assist Door Module)3. SJB (Smart Junction Block)4. Door lock knob5. Trunk lid actuator6. Door latch module7. Door lock/unlock switch8. RLDM ( ...

Power Door Lock Module Repair procedures
Inspection     • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/asse ...
