Hyundai Elantra: Rear Suspension System / Rear Shock Absorber Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Suspension System / Rear Suspension System / Rear Shock Absorber Components and Components Location

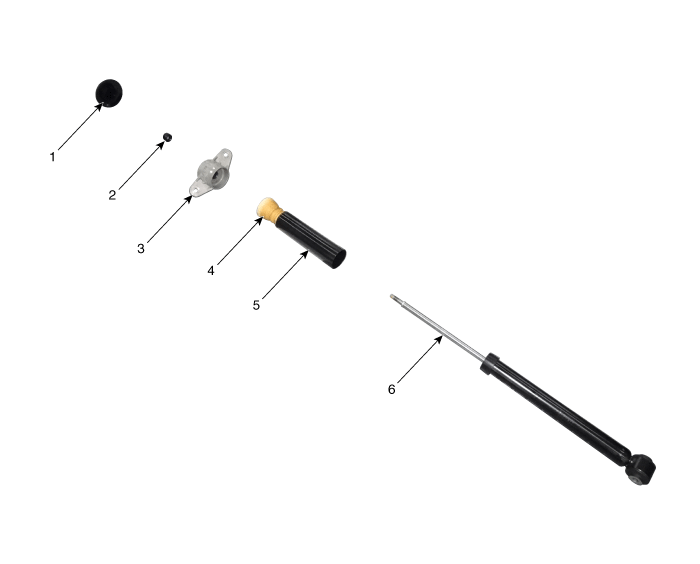

Components

1. Shock absorber dust cap
2. Lock nut
3.Insulator assembly
4. Bumper rubber
5. Dust cover
6. Shock absorber

Components and Components Location
Components Location 1. Rear shock absorber2. Coil spring3. Torsion beam axle4. Torsion beam axle cover ...

Rear Shock Absorber Repair procedures
Removal 1. Loosen the wheel nuts slightly. 2. Raise the vehicle, and make sure it is securely supported. 3. Remove the rear wheel and tire (A) from front hub. Tightening torque : 107.9 ...
