Hyundai Elantra: Air Conditioning System / Refrigerant Line Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Refrigerant Line Components and Components Location

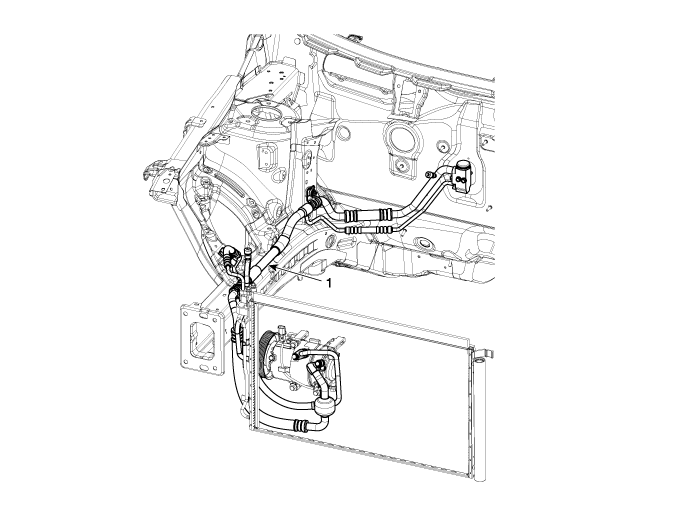

Components Location

1. Refrigerant Line Assembly

Compressor oil Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (P ...

Refrigerant Line Repair procedures

Replacement 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. 2. Disconnect the neg ...
