Components Location

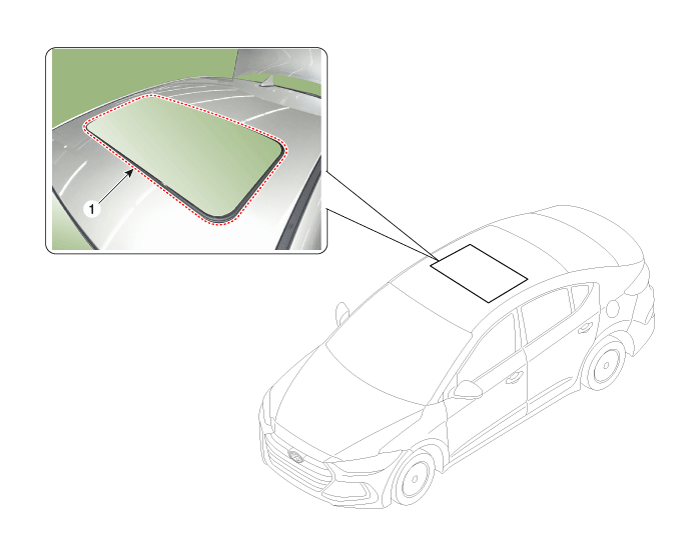

1. Sunroof glass


Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value ...

Sunroof Glass Repair procedures
Replacement     • Put on glove to protect your hands. 1. Close the sunroof glass completely by pressing the sunroof switch. 2. Loosen the mounting screws (A) and r ...
