Hyundai Elantra: Heater / Temperature Control Actuator Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Heater / Temperature Control Actuator Repair procedures

Inspection

1.	Turn the ignition switch OFF.

2.	Disconnect the temperature control actuator connector.

Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.

Verify that the temperature control actuator operates to the warm position when connected in reverse.

Pin NO	Function
1	-
2	-
3	Cool position
4	Sensor (+5V)
5	Feedback signal
6	Sensor ground
7	Warm position

4.	Connect the temperature control actuator connector.

5.	Turn the ignition switch ON.

6.	Check the voltage between terminal 5 and 6.

7.	If the measured voltage is not within specification, check the operation by replacing the existing temperature control actuator with a new genuine part. After that, determine whether replacement of the temperature control actuator is required or not.

Diagnosis With GDS

The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).

? The diagnostic system (GDS) provides the following information.

(1) Self diagnosis : Checking the failure code (DTC) and display.

(2) Current data : Checking the system input/output data state.

(3) Actuation test : Checking the system operation condition.

(4) Additional function : Other controlling such as he system option and zero point adjustment.

2.	Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

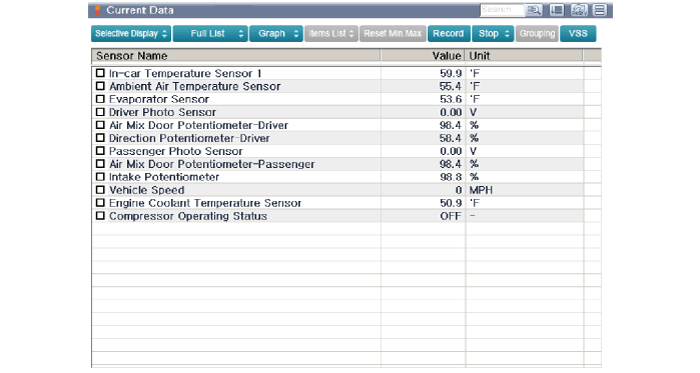

3.	Select the 'Current data' menu to search the current state of the input / output data. The input / output data for the sensors corresponding to the Temperature Control Actuator can be checked.

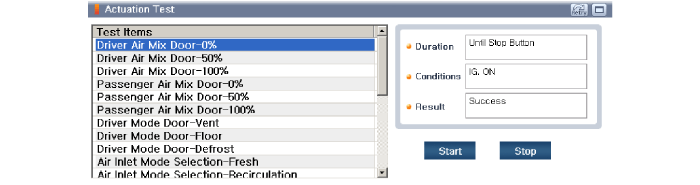

4.	To perform compulsory operation on Temperature Control Actuator input factors, select "ACTUATION TEST".

Replacement

[Driver's side]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

3.	Remove the driver's side shower duct (A) after loosening the screw.

4.	Disconnect the connector (A) and then remove the driver's side temperature control actuator (B) after loosening the mounting screws.

5.	To intall, reverse the removal procedure.

[Passenger's side]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the glove box upper cover assembly. (Refer to Body - "Glove Box Upper Cover Assembly")

3.	Remove the passenger's side shower duct (A) after loosening the screw.

4.	Disconnect the connector (A) and then remove the passenger's side temperature control actuator (B) after loosening the mounting screws.

5.	To intall, reverse the removal procedure.

Temperature Control Actuator Specifications

Specifications Door PositionVoltage (V)Error DetectingMax. cooling0.3 ± 0.15 Low voltage : 0.1V or less High voltage : 4.9V or moreMax. heating4.7 ± 0.15 ...

Mode Control Actuator Components and Components Location

Components Location 1. Mode control actuator ...
