Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cooling System / Water pump Components and Components Location

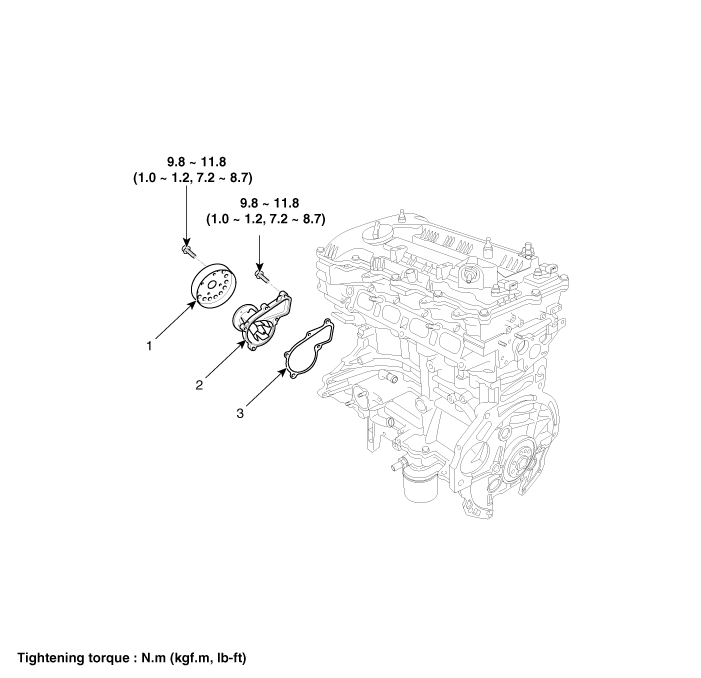

Components

1. Water pump pulley
2. Water pump

3. Water pump gasket

Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Remove the engine cover. (Refer to Engine And Transaxle Assembly - “Engine Cover”) 2. Drain the engine coolant so its level is below water temperature control ...

Water pump Repair procedures

Removal and Installation 1. Drain the coolant. (Refer to Cooling System - "Coolant") 2. Remove the drive belt. (Refer to Timing System - “Drive Belt”) 3. Remove the water pump pull ...
