Hyundai Elantra: Rear Suspension System / Rear Torsion Beam Axle Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Suspension System / Rear Suspension System / Rear Torsion Beam Axle Components and Components Location

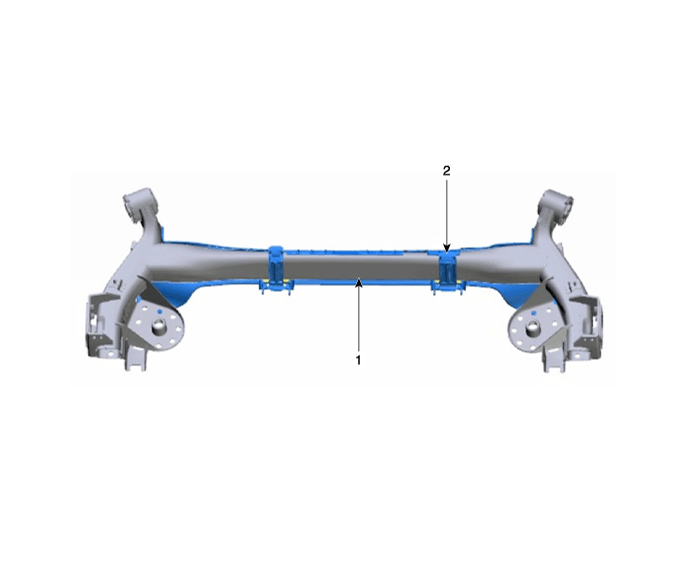

Components (1)

1. Torsion beam axle
2. Torsion beam axle cover

Rear Coil Spring Repair procedures
Removal 1. Loosen the wheel nuts slightly. 2. Raise the vehicle, and make sure it is securely supported. 3. Remove the rear wheel and tire (A) from front hub. Tightening torque : 107.9 ...

Rear Torsion Beam Axle Repair procedures
Removal [Disc type] 1. Loosen the wheel nuts slightly. 2. Raise the vehicle, and make sure it is securely supported. 3. Remove the rear wheel and tire (A) from front hub. Tightening ...
