Hyundai Elantra: Fuses And Relays / Relay Box (Engine Compartment) Repair procedures
1. |
Disconnect the negative (-) battery terminal. |
2. |
Pull out the relay from the engine compartment relay block. |
Power Relay (Type A)
Check for continuity between the terminals.
1. |
After supplying power to between No. 85 and 86 power relay
terminals, check that there is continuity between No. 30 and 87
terminals. |
2. |
After disconnecting power between No. 85 and 86 power relay
terminals, check that there is no continuity between No. 30 and 87
terminals.

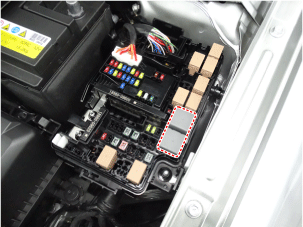

Engine Room Relay Block


|
Power Relay (Type B)
Check for continuity between the terminals.
1. |
After supplying power to between No. 85 and 86 power relay
terminals, check that there is continuity between No. 30 and 87
terminals. |
2. |
After disconnecting power between No. 85 and 86 power relay
terminals, check that there is no continuity between No. 30 and 87
terminals.


|
PCB block
1. |
Disconnect the negative (-) battery terminal. |
2. |
Push the four hooks (B) in the direction of the arrow and lift up the PCB block (A).
|
3. |
Remove the PCB block by disconnet the connector.
|
Fuse
1. |
Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders. |
2. |
Check that each fuse circuit has the exact fuse capacity. |
3. |
Check the fuses for any damage.
• |
If a fuse is to be replaced, be sure to use a new fuse of the
same capacity. Always identify the cause of the blown fuse and
completely eliminate the problem before installing a new fuse. |
|
|
Multi Fuse
Engine room fuse is to optimize the package.


• |
The entire multi fuse (A) has to be replaced even if only one fuse is damaged. |
• |
When replacing it, refer to "the Engine compartment-
component location" diagram to check fuse capacities and circuit
arrangement. |
• |
Use the multi fuse of the exact fuse capacity for each circuit. |
|
Component Location
Engine Room Junction Block
Metal Core Block (PCB) ...
