Hyundai Elantra: Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

Component Location

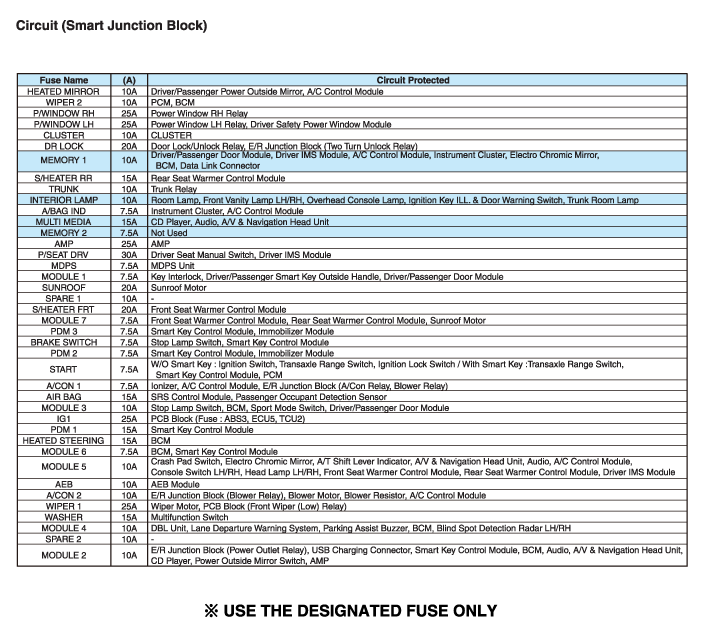

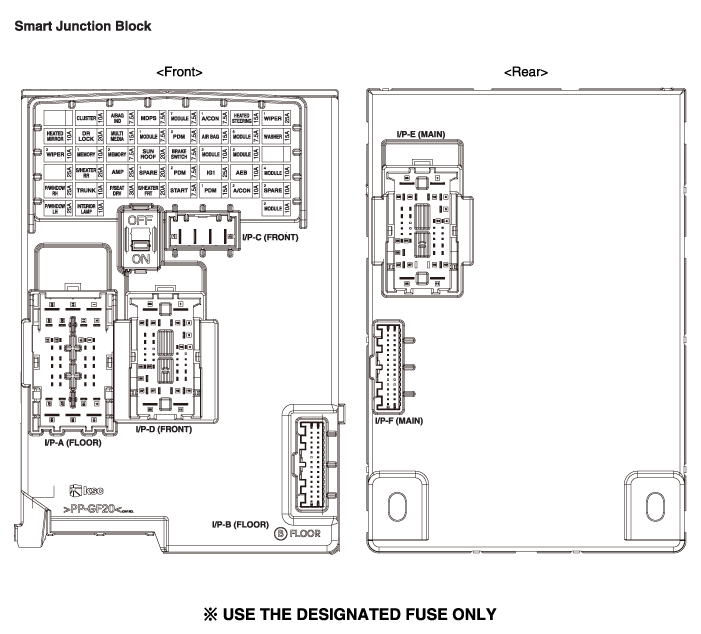

Interior Junction Block
