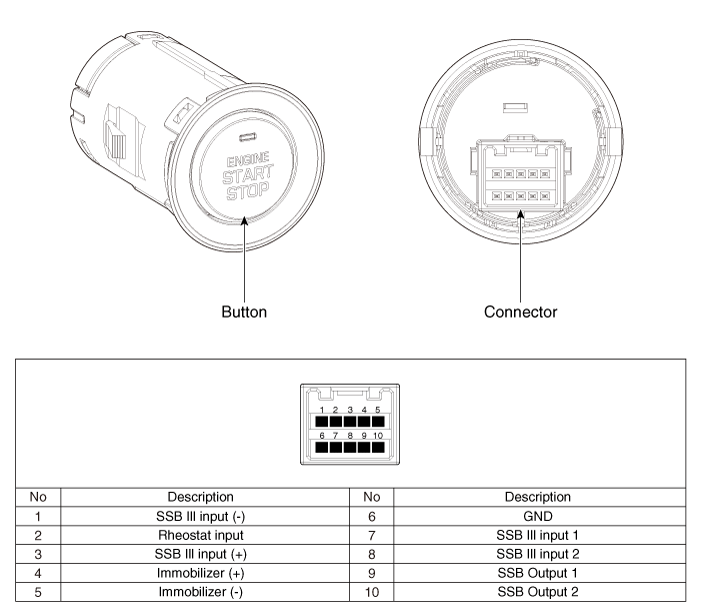

Component

Description and Operation

Description System Overview The System offers the following features: - Human / machine interface through a 1-stage button, for terminal switching and engine start. - Control of external ...

Start/Stop Button Repair procedures

Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the crash ped lower panel. (Refer to Body - "Crash Ped Lower Panel") 3. Remove the start/stop button (B) after disconnect ...
